A Better Way to Redis GeoHash

30 Jun 2020 - by starkdg

reventis

Redis, an in-memory data store cache, is a popular database for many applications. One of its many unique features is the geohash set of commands. These commands allow you to add locations to a sorted set, find the distance between any two locations, or even get a list of all locations that fall within a given radius of a particular location. A typical usage might run as follows:

127.0.0.1:6379> geoadd myplaces -72.677169 41.761841 hartford-ct
(integer) 1
127.0.0.1:6379> geoadd myplaces -72.620889 41.764183 easthartford-ct
(integer) 1
127.0.0.1:6379> geoadd myplaces -72.667689 41.702897 wethersfield-ct
(integer) 1
127.0.0.1:6379> geoadd myplaces -72.746997 41.749971 westhartford-ct
(integer) 1
127.0.0.1:6379> geoadd myplaces -72.339749 41.564189 colchester-ct
(integer) 1
127.0.0.1:6379> geoadd myplaces -72.234068 41.782345 mansfield-ct
(integer) 1

Then, to get all distances within 5 miles of hartford-ct, just do:

127.0.0.1:6379> georadiusbymember myplaces hartford-ct 5 mi
1) "westhartford-ct"
2) "wethersfield-ct"
3) "hartford-ct"
4) "easthartford-ct"

To get the distance in miles between colchester-ct and mansfield-ct:

127.0.0.1:6379> geodist myplaces colchester-ct mansfield-ct mi
"16.0341"

To lookup individual locations’ coordinates:

127.0.0.1:6379> geopos myplaces colchester-ct mansfield-ct
1) 1) "-72.33974844217300415"
   2) "41.56418901188302328"
2) 1) "-72.23406940698623657"
   2) "41.78234485790384412"

Indeed, the Redis geohash can be extremely useful tool for web applications offering location-based services.

However, that’s about all it can do. It lacks many other features of a full spatial-temporal or object tracking index that would no doubt be highly useful.

Reventis

Reventis - a portmanteau of the words, Redis and Events - is a Redis Module that introduces a native data structure capable of indexing events or point locations in time and space. Events can be inserted into the data structure by its geo-spatial coordinates along with beginning and ending timestamps. Then all events within a given geographical area and timespan can be queried. The sequence mirrors the geohash commands. Here is an example:

127.0.0.1:6379> reventis.insert myplaces -72.569023 41.839269 06-01-2020 10:00 06-01-2020 12:00 "southwindsor-ct"
(integer) 942729159590019073
127.0.0.1:6379> reventis.insert myplaces -72.534727 41.770793 06-01-2020 11:00 06-01-2020 11:35 "manchester-ct"
(integer) 942950844413706242
127.0.0.1:6379> reventis.insert myplaces -72.565348 41.907065 06-01-2020 11:15 06-01-2020 11:20 "eastwindsor-ct"
(integer) 943188820988133379
127.0.0.1:6379> reventis.insert myplaces -72.310697 41.958829 06-01-2020 10:30 06-01-2020 11:05 "stafford-ct"
(integer) 943534029388972036
127.0.0.1:6379> reventis.insert myplaces -72.480640 41.806255 06-02-2020 10:00 06-02-2020 11:00 "buckley-manchester"
(integer) 943880954251706373

The insert command is followed by a key string, the longitude, latitude, beginning date-time, end-date-time, and finally, a short descriptive string of the event. The command returns an integer identifier for that new event.

The queryradius command retrieves all the events inserted within a 10 mile radius of South Windsor, Ct for June 1, 2020.

127.0.0.1:6379> reventis.queryradius myplaces -72.594856 41.814437 10 mi 06-01-2020 8:00 06-01-2020 16:00
1) 1) "manchester-ct"
   2) (integer) 942950844413706242
   3) "-72.534727000000004"
   4) "41.770792999999998"
   5) "06-01-2020 11:00:00\x00"
   6) "06-01-2020 11:35:00\x00"
2) 1) "southwindsor-ct"
   2) (integer) 942729159590019073
   3) "-72.569023000000001"
   4) "41.839269000000002"
   5) "06-01-2020 10:00:00\x00"
   6) "06-01-2020 12:00:00\x00"
3) 1) "eastwindsor-ct"
   2) (integer) 943188820988133379
   3) "-72.565348"
   4) "41.907065000000003"
   5) "06-01-2020 11:15:00\x00"
   6) "06-01-2020 11:20:00\x00"

What if you want to retrieve only certain kinds of events?

With Reventis, inorder to further filter events, you can assign integer categories 1 to 64 to each event. Multiple categories per event are possible. Simply invoke the addcategory command with the key, the assigned id number for that event, followed by a list of categories you wish to assign.

reventis.addcategory myplaces 942729159590019073 10 20 30
reventis.addcategory myplaces 942950844413706242 10 20
reventis.addcategory myplaces 943188820988133379 55 60

Then you can query in the same way as above with the desired categories appended onto the end of the command. The following queries the myplaces key for categories 10 and 20.

127.0.0.1:6379> reventis.querybyradius myplaces -72.594856 41.814437 10 mi 06-01-2020 8:00 06-01-2020 16:00 10 20
1) 1) "manchester-ct"
   2) (integer) 942950844413706242
   3) "-72.534727000000004"
   4) "41.770792999999998"
   5) "06-01-2020 11:00:00\x00"
   6) "06-01-2020 11:35:00\x00"
2) 1) "southwindsor-ct"
   2) (integer) 942729159590019073
   3) "-72.569023000000001"
   4) "41.839269000000002"
   5) "06-01-2020 10:00:00\x00"
   6) "06-01-2020 12:00:00\x00"

Object Tracing

By attaching an object integer identifier to an event, Reventis provides the ability to track objects. With the update command, a new event is inserted to the data structure with a given object ID provided. In this way, a chain of events can be tracked with a common object identifier. The update command is followed by a key string, longitude, latitude, timestamp, an object id, and finally, a descriptive string for the update. For example,

127.0.0.1:6379> reventis.update mytracks -72.514046 41.823773 06-01-2020 8:00 100 "avery st., SW, CT"
(integer) 2692244187721629697
127.0.0.1:6379> reventis.update mytracks -72.679270 41.754280 06-01-2020 9:00 100 "seymour st. Htfd, CT"
(integer) 2692649354707730434
127.0.0.1:6379> reventis.update mytracks -72.673778 41.773129 06-01-2020 10:30 100 "Rensselaers, Htfd, CT"
(integer) 2692919245505495043
127.0.0.1:6379> reventis.update mytracks -72.672338 41.762721 06-01-2020 11:15 100 "Uconn Htfd, CT"
(integer) 2693312935547633668
127.0.0.1:6379> reventis.update mytracks -72.760321 41.762886 06-01-2020 13:00 100 "Front St, Htfd, CT"
(integer) 2693757132817039365
127.0.0.1:6379> reventis.update mytracks -72.554229 41.825927 06-01-2020 17:00 100 "Wapping, SW, CT"
(integer) 2694272864704200710
127.0.0.1:6379> reventis.update mytracks -72.604337 41.695416 06-01-2020 9:30 200 "Sherman, Rd, Glastonbury, CT"
(integer) 2694635424033406983
127.0.0.1:6379> reventis.update mytracks -72.689379 41.748207 06-01-2020 11:00 200 "Trinity College, Htfd.,CT"
(integer) 2694958883051143176
127.0.0.1:6379> reventis.update mytracks -72.668197 41.762560 06-01-2020 12:00 200 "Convention Center, Htfd.,CT"
(integer) 2695270279792492553
127.0.0.1:6379> reventis.update mytracks -72.671490 41.762741 06-01-2020 14:30 200 "Bears Smokehouse BBQ, Htfd, CT"
(integer) 2695768111295037450
127.0.0.1:6379> reventis.update mytracks -72.463723 41.638888 06-01-2020 19:00 200 "Denler, Dr - Marlborough, CT"
(integer) 2696103043806396427
127.0.0.1:6379> reventis.update mytracks -72.568387 41.685582 06-02-2020 11:00 200 "Glastonbury, CT"
(integer) 2696432004334157836```

Now we can query for all updates that fall within a 5 mile radius of Hartford, Ct.

127.0.0.1:6379> reventis.queryobjradius mytracks -72.675968 41.763890 5 mi 06-01-2020 06:00 06-01-2020 23:00
1) 1) "Front St, Htfd, CT"
   2) (integer) 2693757132817039365
   3) (integer) 100
   4) "-72.760321000000005"
   5) "41.762886000000002"
   6) "06-01-2020 13:00:00\x00"
2) 1) "seymour st. Htfd, CT"
   2) (integer) 2692649354707730434
   3) (integer) 100
   4) "-72.679270000000002"
   5) "41.754280000000001"
   6) "06-01-2020 09:00:00\x00"
3) 1) "Convention Center, Htfd.,CT"
   2) (integer) 2695270279792492553
   3) (integer) 200
   4) "-72.668197000000006"
   5) "41.762560000000001"
   6) "06-01-2020 12:00:00\x00"
4) 1) "Rensselaers, Htfd, CT"
   2) (integer) 2692919245505495043
   3) (integer) 100
   4) "-72.673777999999999"
   5) "41.773128999999997"
   6) "06-01-2020 10:30:00\x00"
5) 1) "Uconn Htfd, CT"
   2) (integer) 2693312935547633668
   3) (integer) 100
   4) "-72.672337999999996"
   5) "41.762720999999999"
   6) "06-01-2020 11:15:00\x00"
6) 1) "Trinity College, Htfd.,CT"
   2) (integer) 2694958883051143176
   3) (integer) 200
   4) "-72.689379000000002"
   5) "41.748207000000001"
   6) "06-01-2020 11:00:00\x00"
7) 1) "Bears Smokehouse BBQ, Htfd, CT"
   2) (integer) 2695768111295037450
   3) (integer) 200
   4) "-72.671490000000006"
   5) "41.762740999999998"
   6) "06-01-2020 14:30:00\x00"

Or get a list of objects identifiers that intersect a particular area:

127.0.0.1:6379> reventis.trackallradius mytracks -72.682303 41.765600 5 mi 06-01-2020 5:00 06-01-2020 23:30
1) (integer) 100
2) (integer) 200

There is also the reventis.hist commmand which allows you to get the history of any object - either the entire history or only for a designated time duration.

But How Well Does it Scale?

The all important question!

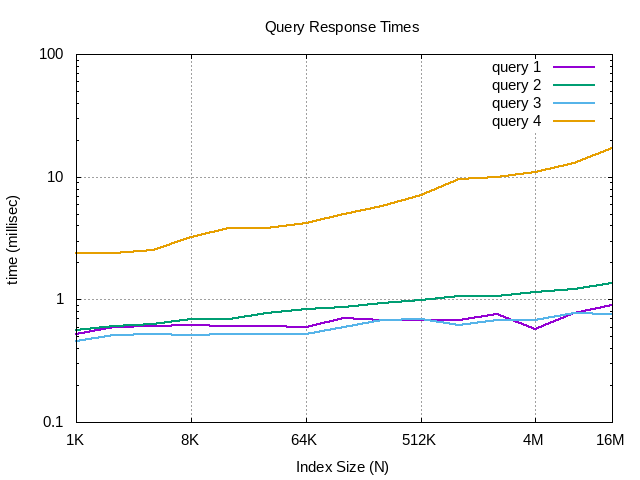

Since Reventis is able to store each event/object in a balanced search tree, query response time complexity is kept within logarithmic bounds. In the following graph, four different query sizes are plotted over increasing index size. The x-axis is for N, the total number of indexed events; the y-axis is response time in milliseconds. As you can see, most queries stabilize to under 1ms over increasing N. Query #4 does not stabilize, because it is literally the size of the state of Texas for over a year in time duration. Also, the test adds uniformly distributed random events, so larger query regions do contain proportionally more retrieved results. However, this ordinarily does not happen in practice, since actual data is usually more clustered.

QueryResults

Summary

Reventis introduces a robust set of commands for the management of spatio-temporal point data, and presents an efficient and invaluable solution for any applications that need to manage location-based data.

More documentaion on the various commands is available here. A client-side library of functions is also available to automate interactions with Redis.

There is also an interesting application of Reventis to the GDELT - Global Database of Events, Locations and Tones - dataset on the project README. I’ll leave further exploration for a future blog post.
